83 Inch Multi Touch Infrared Smart Interactive Whiteboard Provide Skd
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Auveeya |
| Certification: | CE,FCC,ROTHS,ISO |
| Model Number: | ST-9400T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 145~162/sets |
| Packaging Details: | Carton, Wooden pallet, Wooden case |
| Delivery Time: | 1~20 days (According to quantity) |
| Payment Terms: | T/T, Payoneer, L/C, Western Union, |
| Supply Ability: | 3000 Sets per Month |
|
Detail Information |
|||
| Product Name: | Smart Interactive Whiteboard | Size: | 83" (88", 96", 100" Optional) |
|---|---|---|---|
| Technology: | Infrared | Touch Points: | 10 Points |
| Material: | Aluminum Honeycomb+Nano/ceramic | Operating System: | Windows XP/Vista/7/8/10,Linux,Mac,Android |
| Customized Service: | Support SKD, OEM, ODM | Certificates: | CE/FCC/ROHS/ISO9001 |
| Application: | School Teaching, Training | Warranty: | Three Years |
Product Description
83 Inch Infrared Smart Interactive Whiteboard Provide Skd
♦Ultra narrow high tensile aluminum frame with painting treatment,anti scratch and low weight.

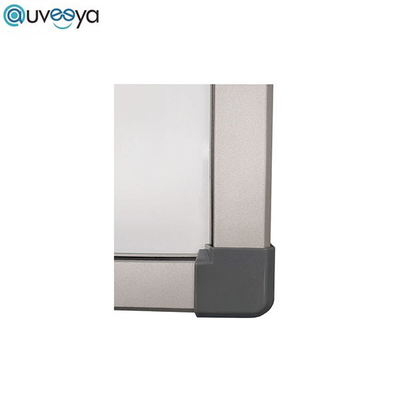

♦Arc plastic conner designed for kids protection.
♦Aluminum honeycomb+Nano/ceramic board
♦Moduled PCB parts designed,easy to seperate and disassemble,easy to maintain.
♦Power supply by USB cable,plug and play with no driver.
♦Wall mounted and floor stand.
♦Regular size:83"/88"/96"/100" with 4:3/16:9 aspect ratio choices.
♦OEM size from 50" to 120"acceptable.
| ST-9400T Series IR Multi-touch interactive whiteboard | |
| Touch specification | |
| Touch technology | Infrared induction 6-32 points touch |
| Touch resolution | 32767*32767 |
| Coordinate Accuracy | ≥1mm |
| Tracking speed | 8m/s |
| Transmitting speed | 12M/s |
| Curson speed | 180pps |
| Respond time | 10ms first click,3ms continuous click |
| Input method | Finger,stylus or any other opaque objects |
| Interface | USB2.0/3.0 |
| Support OS | Windows xp/vista/7/8/10,Linux,Mac,Android |
| Mechanical | |
| Middle board material | Aluminum honeycomb+Nano/Ceramic |
| Projection Effect | Excellent with low glare |
| Viewable angle | Left & Right:170° / On & Under:160 ° |
| Accessories | |
| Stylus markers | Black/Green/Red |
| Wall mount brackets | 1 set(include screws) |
| Software CD | 1 piece |
| USB cable | 5m |
| User manual/installation Guide | 1 piece |
| Mobile floor stand | Optional |
| Certificates | CE/FCC/ROTHS |
| Warranty | 3 years limited |
1. Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer for interactive flat panel, smartboard, touch screen kiosk, and other related products for education and business. We have our own factory in Shenzhen and Qingdao.
2. Q: What's the warranty and service?
A: We provide OEM,ODM and customized service,3 years warranty for whiteboard/touch frame,
1 year for others.
3: Q: MOQ,Delivery term,Payment term?
A: Our normal order MOQ is 1 piece, OEM MOQ is more than 100 pcs.
Delivery term: EXW,FOB,CNF,CIF.etc is no problem.
Payment term: T/T,Payoneer,Paypal .etc
4. Q: Whether to provide any teaching software?
A: Yes, we provide the free education software and update the features timely.
5. Q: How to make the order?
A: Send detailed inquiry to us,then we will reply you with the proforma invoice. Make the payment
after you confirm the PI. We ship the products by express or by sea with 3-5 days upon to your
quantity after we receive the payment.Then you will get the cargoes soon.
6.Q:What's the after-sales service?
A:7 * 24 hours service consultation and technical guidance. Modular designed hardware,
maintenance to be done without skilled technicians.All products have maintenance reference
documents, and we can provide training for your maintenance personnel. Provide 1% spare parts
for after-sales maintenance according to the purchase quantity. For large quality issue,we arrange
special person to visit for after-sale maintenance.
